BCerT Solution of the Families to Persons Case

Description

Step 1: Installation

• Download Eclipse Modeling Tools
• Make sure that Eclipse runs with Java 17 or later

1. Open Eclipse

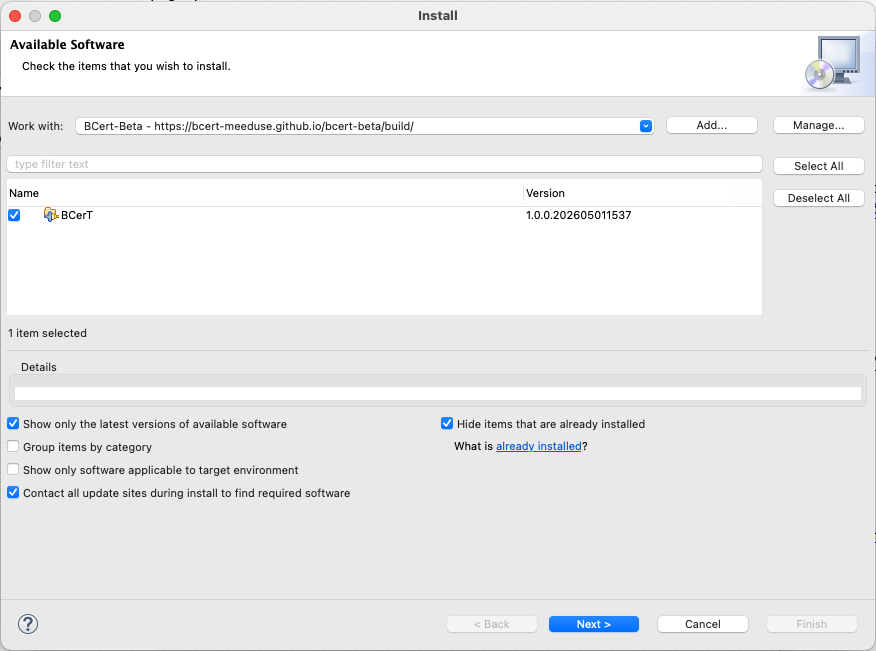

2. Go to Help → Install New Software
3. Add the B4MSecure update site: https://bcert-meeduse.github.io/b4msecure/build/
4. Add the BCerT-beta update site: https://bcert-meeduse.github.io/bcert-beta/build/
5. Select BCerT
6. Click Next
7. Complete the installation wizard
8. Accept the licences
9. Restart Eclipse when prompted

Installation time depends on your network connection because eclipse tries some updates before starting installation.

For general instructions on installing software from update sites, refer to the Eclipse documentation.

Step 2: Download and Import the Solution Project

Download and unzip the archive: 2026_TTC_fp.zip

Once extracted, the archive is organized into several folders corresponding to the different transformation scenarios of the TTC case. Note that the test folders (1_BatchForward, 2_BatchBackward, etc.) provide ready-to-run test files from the TTC 2026 Families-to-Persons benchmark.

The metamodels used in the case are located in:

• Families – Source metamodel
• Persons – Target metamodel
• pivot – Contains our solution, including the CSP specification and the B models of the transformation, which are described later

Import into Eclipse

1. Open Eclipse
2. Go to: File → Import…
3. Select: General → Existing Projects into Workspace
4. Click Next
5. Choose Select root directory
6. Browse to the extracted folder 2026_TTC_fp
7. Select all detected projects
8. Click Finish

Step 3: Solution overview with basic scenarios

The folder 0_MainTests provides basic examples that help understand how synchronization is triggered, observe the effects of rule applications, and get familiar with the overall execution workflow in BCerT.

To open a pivot file, right-click on it, select Open With → Other…, and choose Sample Ecore Model Editor.

Managing the workspace

The following video shows how to open the 0_empty.pivot model, inspect its content, launch the animator, and organize the workspace to display the Execution View, the State View, and the Trace View.

Steps

• In the Model Explorer, right-click on the root element of the .pivot file,
• then select: Execute model → T0_MainTransformation.mch,
• click Finish.

This opens the main views: the Execution View and the State View, which can be arranged as needed.

• The Execution View allows step-by-step execution of the B machine on the selected model. From this view you have the possibility to open the Execution History View.
• The State View displays the current values of the variables of the B machine. It reflects the current state of the models involved in the transformation, including the pivot, the source (Families), and the target (Persons) models.
• The Execution History View (not displayed by default) provides a history of executed operations during the animation. To show the execution trace, right-click inside the Execution View and select Trace.

Interactive debugging of a transformation

The following video illustrates interactive debugging of a transformation. It demonstrates how to incrementally modify the models and observe both forward and backward transformations.

Steps

• Step 1: add elements to the source model (Families),
• Step 2: observe the forward transformation and the creation of corresponding elements in the target model (Persons),
• Step 3: delete a person and observe the forward propagation (the person is automatically recreated),
• Step 4: change the propagation strategy to backward,
• Step 5: delete a person in the target model,
• Step 6: observe the backward transformation and its effect on the source model.

Automatic running of a transformation

All pivot files contained in a project can be processed in a single run using the Transformation Runner. The execution can be performed sequentially or in parallel. In parallel mode, each pivot file is handled by a separate job. The following video demonstrates the complete workflow.

Steps

• Right-click on a project in the Model Explorer and select Run Transformation.
• In the Run Transformation interface, select the B specification you want to apply to all pivot files of the project. In this example, we choose project T0_MainTests and apply the machine T0_MainTransformation.mch.
• Select Parallel if you want the execution of the transformation to be done in parallel for the test files. This launches the runner in separate jobs, which enhances performance compared with sequential execution.
• The Transformation Runner is then launched. It shows the parallel jobs and their execution state.
• When finished, you obtain execution metrics highlighting the benefit of parallel execution compared to a sequential run.

RUN FINISHED

Total models           : 15
Wall-clock total       : 4180 ms
Average time per model : 278 ms
...

• Open the Trace View by clicking on the corresponding icon in the Transformation Runner. The Trace view shows the files on which the transformation has been applied.
• Click on Expand all to see the B operations that have been applied for every file.
• You can inspect the test files to check whether the result is the expected one as described in the README.md file.

Step 4: Running the benchmark

This step is illustrated in the following video.

For each project, a dedicated B specification is executed depending on the testing objective.

• project 1_BatchForward → T1_BatchForward.mch
• project 2_BatchBackward → T2_BatchBackward.mch
• …

Each project follows the same structure and contains the test cases provided in the TTC’26 benchmark.
For each test case toto, three files are defined:

• toto.pivot
• totoFam.xmi
• totoPer.xmi

Initially, these files are empty. The pivot file acts as the entry point: its root element references the roots of both the family model and the person model. This is where the transformation starts.

The Expected folder of each project contains the expected results for every test case, as provided by the TTC benchmark. These files are used to validate the transformation output.

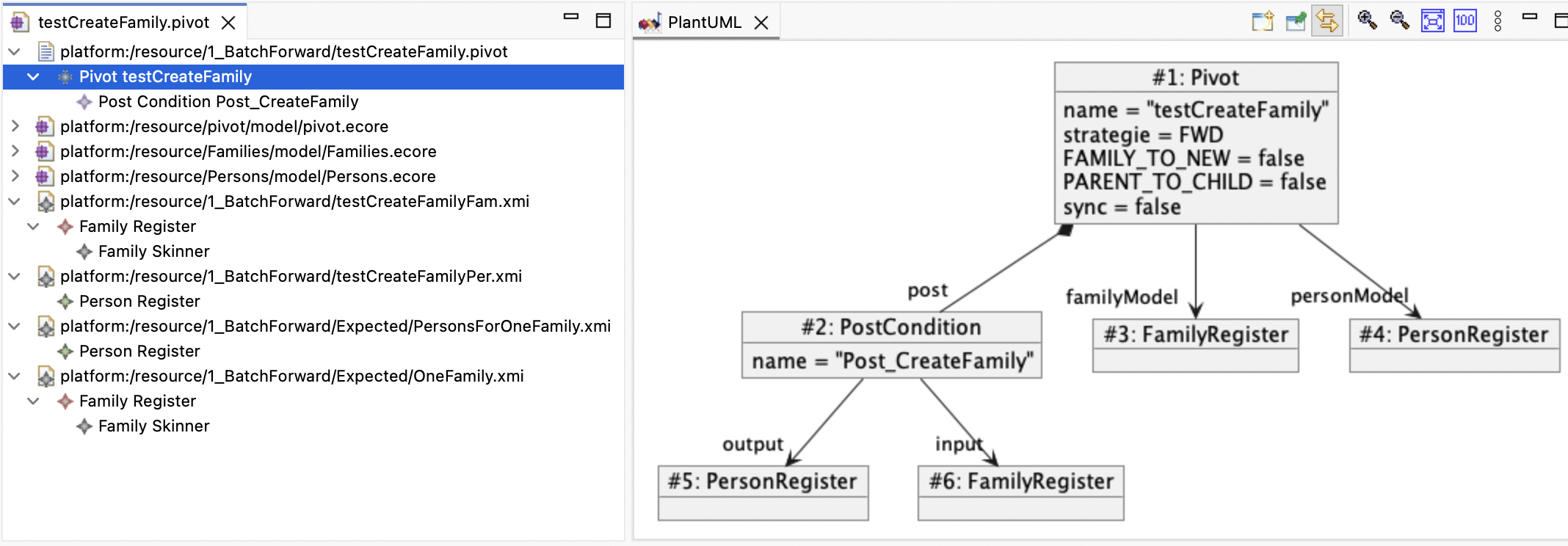

The following figure illustrates the pivot structure for the test case testCreateFamily.

In this example, the pivot named testCreateFamily defines:

• the transformation strategy (FWD),
• configuration parameters (FAMILY_TO_NEW, PARENT_TO_CHILD, sync),
• references to the input models (FamilyRegister and PersonRegister),
• and a post-condition (Post_CreateFamily) referencing the expected results.

Step 5: Reset, Transform and Debug

The following video illustrates a typical workflow combining automatic execution and interactive debugging.

First, the transformation is executed automatically on all test cases of the 1_BatchForward project. Then, a specific test case is selected for detailed inspection, namely testDuplicateFamilyMemberNames.pivot. This workflow can of course be reproduced for any of the other projects.

A first step consists in running the RESET.mch machine on this pivot. This operation clears the person model and removes the existing families, bringing the models back to a clean initial state.

In a second step, the interactive animation of T1_BatchForward.mch is launched. This allows the transformation to be executed step by step, making it possible to observe how the model evolves at each stage of the test scenario and to better understand which rules are applied.

Transformation rules in B

The formal models are located in pivot/model/*.mch and *.csp, together with auxiliary definition files (*.def). The transformation rules are defined in MetaModel.mch.

• The user-oriented transformation is driven by the machine T0_MainTransformation.mch. This machine acts as a wrapper that exposes only the transformation operations defined in MetaModel.mch.
• The execution is delegated to ProB, which is an animator, constraint solver, and model checker for B. At each step, ProB computes the operations that are enabled in the current state of the EMF model, i.e., those whose preconditions hold.

MACHINE
    T0_MainTransformation
INCLUDES
    MetaModel
PROMOTES
  ConcurrentDeleteMatched,
  ConcurrentMatchMemberPerson,
  ConcurrentTargetRenameWins,
  Member2Person,
  ForwardDelete,
  ForwardRename,
  Person2MemberExistingFamily,
  Person2MemberNewFamily,
  BackwardDelete,
  BackwardRenameMemberName,
  BackwardMoveMaleToExistingFamily,
  BackwardMoveFemaleToExistingFamily,
  BackwardMoveMaleToNewFamily,
  BackwardMoveFemaleToNewFamily,
  ForwardCreateMissingPerson
END

Forward transformation rules

• Member2Person
  Creates a new Person from an unmapped FamilyMember, initializes its attributes, and establishes the corresponding mapping.

• ForwardCreateMissingPerson
  Completes an existing mapping by creating the missing Person when a FamilyMember is already mapped but no corresponding person exists.

• ForwardRename
  Updates the name of a Person to reflect changes in the corresponding FamilyMember (family name or member name).

• ForwardDelete
  Deletes a Person when the corresponding FamilyMember no longer exists, and removes the associated mapping.

• ForwardRepairGender
  Repairs inconsistencies between the gender of a Person and the corresponding FamilyMember.

Backward transformation rules

• Person2MemberNewFamily
  Creates a new Family and a corresponding FamilyMember from an unmapped Person, when no suitable family exists.

• Person2MemberExistingFamily
  Creates a new FamilyMember inside an existing family that matches the Person’s family name.

• BackwardRenameMemberName
  Updates the name of a FamilyMember to match the corresponding Person.

• BackwardDelete
  Deletes a FamilyMember when the corresponding Person no longer exists, and removes the associated mapping.

• BackwardMoveMaleToExistingFamily / BackwardMoveFemaleToExistingFamily
  Moves a FamilyMember to an existing target family when the associated Person refers to a different family.

• BackwardMoveMaleToNewFamily / BackwardMoveFemaleToNewFamily
  Creates a new family and moves the FamilyMember into it when the target family does not exist.

Concurrent and consistency rules

• ConcurrentMatchMemberPerson
  Creates a mapping between an existing FamilyMember and an existing Person when they match but are not yet linked.

• ConcurrentDeleteMatched
  Removes obsolete mappings when both the source and target elements have already been deleted.

• ConcurrentTargetRenameWins
  Resolves rename conflicts by prioritizing the target (Person) side and propagating the change back to the family model.

• ConcurrentDeleteWins
  Resolves conflicts between deletion and renaming by prioritizing deletion and removing the corresponding elements and mappings.

Testing infrastructure

To support testing, we rely on a combined CSP (communicating sequential processes) and B approach, which is part of the beta version of BCerT. While B ensures the correctness of state-based transformations through invariants and proofs, CSP is used as an orchestrator to control execution scenarios. This combination allows us to structure test cases as behavioral traces, making it possible to validate the transformation against the TTC benchmark test cases.

Let’s consider the example of the simplest test suite, that of batch forward, used in machine T1_BatchForward.mch. The overall idea is to combine the three layers:

• MetaModel.mch defines the core transformation rules (e.g., Member2Person, ForwardRename, etc.), together with basic model manipulation operations (e.g., SonNEW, FamilySetName, etc.).
• T1_BatchForward.mch specifies how the transformation is applied for batch forward testing objective.

• BatchForward.csp defines the test suite by orchestrating the operations of T1_BatchForward.mch.

    +----------------------+     +----------------------+     +----------------------+
    |    MetaModel.mch     | --> | T1_BatchForward.mch  | --> |   BatchForward.csp   |
    | (transformation      |     | ( propagation        |     | (execution control   |
    |  rules + basic       |     |   + mutation )       |     |                      |
    |  operations)         |     |                      |     |                      |
    +----------------------+     +----------------------+     +----------------------+


The following basic operation from MetaModel.mch creates a new son within an existing family by introducing a new FamilyMember and linking it to the corresponding family.

SonNEW(aFamilyName, aSonName) =
  PRE
    aSonName : STR1 &
    aFamilyName : STR1
  THEN
    ANY aFamily, aMember WHERE
        aFamily : Family & Families_Family_name(aFamily) = aFamilyName
        & families(aFamily) = fmlRoot
        & aMember : FAMILYMEMBER
        & aMember /: FamilyMember
    THEN
        FamilyMember := FamilyMember \/ {aMember} ||
        theSons := theSons \/ {aMember |-> aFamily} ||
        Families_FamilyMember_name := Families_FamilyMember_name <+ {aMember |-> aSonName}
    END
  END;

The following operation from T1_BatchForward.mch defines a mutation of the input model where a new family “Flanders” is created with a son “Rod”.

fam <-- createFlandersFamilySonRod =
    BEGIN
        fam <-- FamilyNEW("Flanders") ;
        SonNEW("Flanders", "Rod")
    END ;

The operation propagate from T1_BatchForward.mch triggers one step of the forward transformation by applying the rule Member2Person. In fact, in the batch forward test suite only rule Member2Person is useful.

propagate =
    BEGIN
        Member2Person
    END

On the CSP side, a test scenario is described as a sequence of actions. For example:

testCreateFamilyMember.true
    -> noPrecondition
    -> createFlandersFamilySonRod
    -> TRANSFORM

This means that:

1. the test case testCreateFamilyMember is selected,
2. no precondition is required,
3. the input model is updated by introducing one family with one member,
4. the transformation is executed.

Process TRANSFORM applies transformation rules repeatedly as long as they are enabled, until the POST branch can be taken (i.e., a call to assertPostcondition occurs).

TRANSFORM =
      propagate -> TRANSFORM
  []
      POST

POST =
      assertPostcondition.true  -> STOP
  []
      assertPostcondition.false -> STOP

Note that the preconditions of propagate and assertPostcondition are mutually exclusive. As long as at least one transformation rule is applicable, propagate remains enabled and the system continues applying transformation steps. Once no rule can be triggered anymore (i.e., a fixpoint is reached), propagate becomes disabled and only assertPostcondition can be executed. This ensures a separation between the transformation phase and the validation phase.
